Heavy plank doors that sag, drag or will not latch

Quick answer

Heavy plank doors sag from hinge leverage and loose battens. Tighten and plug the hinge holes, fix or add a diagonal brace in the right direction, and consider a third hinge.

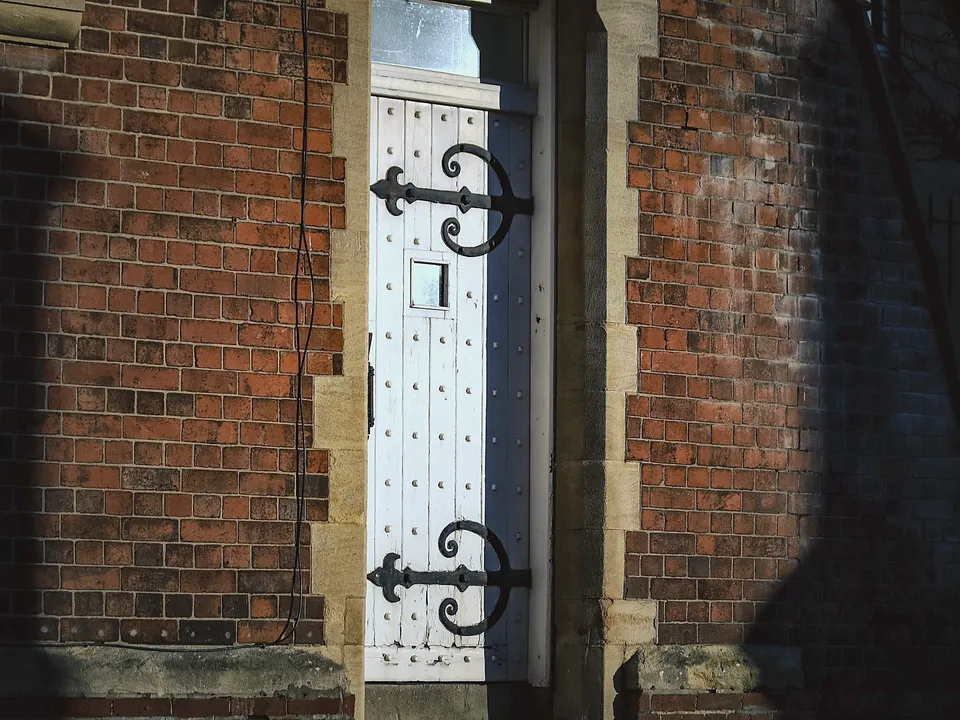

The Mission Revival look that runs through San Gabriel, inspired by the mission itself, shows up clearly in doors. Plenty of older homes and many later ones built in that style have heavy wood plank doors, sometimes with arched tops, rough-sawn or wire-brushed faces, clavos (decorative nail heads), small speakeasy grilles, and black iron strap hinges that run across the face of the door. Garden gates and courtyard doors often follow the same pattern.

They are heavy, handsome and built to take a beating. Their weight is also their main weakness. This guide covers why plank doors sag and drag, what you can check, and how we repair them while keeping their character.

How plank doors are built

A plank door is typically made from vertical boards joined edge to edge, held together by horizontal battens or a frame on the back. Some have a diagonal brace forming a Z on the back side, which keeps the door from racking out of square. Strap hinges may be fully functional, carrying the door's weight, or decorative, with smaller working hinges hidden on the edge.

Knowing which you have matters. If the strap hinges are real, their bolts and the wood they pass through carry everything. If they are decorative, the edge hinges are the ones to check.

Why heavy doors sag

• Leverage. A heavy door hanging from one side pulls constantly on the top hinge. Over the years, screws loosen, holes enlarge, and the top hinge pulls away from the frame.
• Racking. If the boards and battens loosen, the door drops at the latch corner and goes out of square, even when the hinges are tight.
• Missing or loose brace. The diagonal brace has to run up from the bottom hinge side toward the top latch side to do its job. On some doors it was installed the wrong way or has worked loose.
• Weather. Exterior plank doors swell and shrink with sun and rain, loosening joints.
• Undersized hinges. Replacement hinges are sometimes too light for the door.

Symptoms to look for

• The bottom corner on the latch side drags on the threshold or floor
• The latch does not meet the strike, or the door has to be lifted to close
• Gaps open between boards
• Daylight shows at the top corner on the hinge side
• Iron hinge straps are rusting or bleeding stains into the wood
• A courtyard gate that once swung freely now drags on the pavers

What you can check yourself

Open the door partway, lift the handle side gently and watch the hinges. If a hinge leaf moves or the screws pull, the hinges are loose. Tighten what you can reach. On functional strap hinges, check the through-bolts and nuts on the back side.

Close the door and look at the gaps around it. An even gap that narrows at the top hinge side and widens at the top latch side means the door has dropped. If the door itself looks out of square, check the battens and brace on the back.

Light surface rust on iron straps can be cleaned with a wire brush and protected with a rust-inhibiting paint in matte black. Keep the wood around it sealed or finished.

When to call us

• A door that drags or will not latch after the hinges are tightened
• Loose battens, open board joints, or a door that has racked
• Stripped or split wood at the hinge locations
• Hinges that need to be replaced with heavier ones
• A courtyard gate that sags between its posts
• Lock or latch hardware that is worn, loose or misaligned

What the door repair involves

We take the weight off the door and assess the hinges first. Stripped holes are filled with hardwood plugs and glue and redrilled so screws grip solid wood. Where the frame allows, longer screws reach into the framing behind the jamb.

On functional strap hinges, we replace corroded bolts and add washers so nuts do not crush into the wood.

If the door itself has racked, we tighten or refasten the battens and correct or add a diagonal brace in the right direction, bringing the door back toward square. Open board joints can sometimes be closed by clamping and refastening the battens.

Then we rehang and fine-tune: adjusting the hinge positions, shimming where needed, and moving or adjusting the strike so the latch catches cleanly. For a door that still rubs, we plane only where necessary and reseal the bare wood. Heavy doors sometimes benefit from adding a hinge, so the load is shared by three instead of two.

Our door and cabinet repair page has more on this work.

Gates and courtyard doors

Wood gates face the same leverage plus weather and constant use. A sagging gate often needs a tension cable or turnbuckle brace across the back, a heavier hinge, or repair of the post it hangs on. If the post has loosened in the ground, that is the starting point.

Keeping heavy doors in shape

Keep exterior plank doors finished on all sides, including the top and bottom edges, to slow moisture swings. Tighten hinge hardware each spring. Use a door stop so the door does not swing hard against walls or plaster.

And avoid hanging heavy wreaths or decorations from the top of a door that is already sagging.
